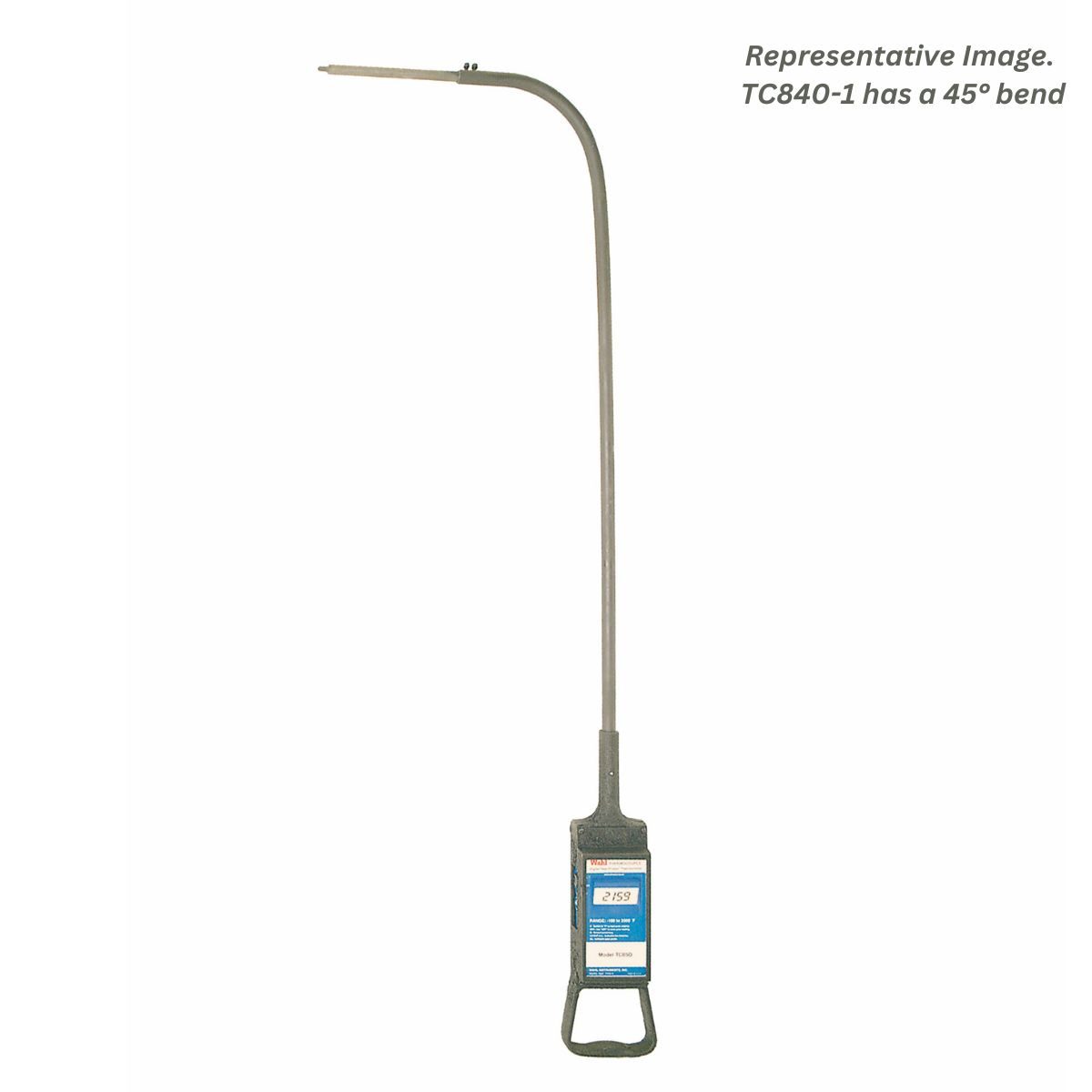

Type S Dipstick Meter System, 48 inches with 45° bend, Fahrenheit or Celsius

Description

TC840 Series Type S Dipstick Meter is designed for use with ferrous molten metals and other high temperature processes.  Choose between Fahrenheit and Celsius models. Meter reads temperatures up to 3200°F (1700°C).

Lance length is 48 inches.  This model has a 45° bend 12 inches from the tip.  One RTC832 expendable tip is included.  Stable temperature readings are reached in 6 to 8 seconds.

System accuracy at molten metal temperatures is typically ±9°F

This model can be used with molten gold.



Specifications

Models

TC840-1F
TC840-1C

Temperature Range

Fahrenheit Range: Up To 3200°F
Celsius Range: Up to 1700°C

Meter Accuracy at Molten Metal Temperature

±9°F

System Accuracy

Greater of ±0.3°F or ±0.5% reading

Sensor Type

Thermocouple Type S

Peak Temperature Hold

Microcomputer calculated, switch to “P” to activate

Warranty

Three years

NIST Available

Yes

Works With

RTC832 Expendable Type S Tips for shallow dips
RTC832S Expendable Type S Tips with 12 inch cardboard sleeve for deeper dips or slag

Resolution

1°F/°C

Length of Lance

48 inches

Angle of Lance

45°
