Micro Four Position IC Batch/Vacuum Chamber Temp-Plate® Temperature Sensitive Labels

Easy to use self-adhesive labels have four temperature points in a micro size for maximum versatility.

Buy Micro Four Position IC Batch/Vacuum Chamber Temp-Plate® online

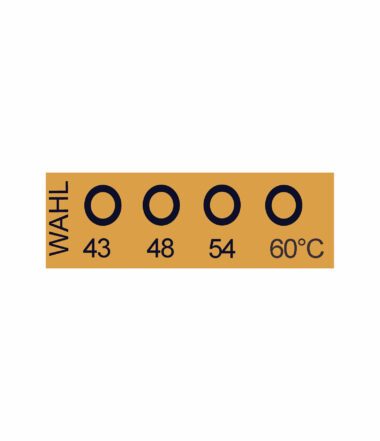

Temp-Plate® temperature sensitive labels have heat sensitive indicator "positions" that turn permanently black when the rated temperature is reached or exceeded, providing a permanent record.   This micro sized label is one of our smallest options and has four temperature indication points.

These IC Batch/Vacuum Chamber models are reverse printed on Kapton material for use in vacuum environments. Easy, self-adhesive installation on most surfaces, our IC Batch/Vacuum Chamber models are typicaly used on the surface of integrated circuits, but are ideal for a variety of uses.

Careful selection of the temperature points allows for detection and recording of most overheat occurrences.  Each temperature position is clearly printed with the rated temperature.  Labels are sold in a recloseable box of 10 labels.

Dimensions are .13 inch x .44 inches (3 x 11 mm).

NIST Calibration data is available for this label.

Built in Asheville, NC USA.

Purchase Temp-Plate® labels online from our dedicated website.

Note that all Temp-Plate® labels containing a temperature position of lower than 110°F/43°C are considered low temperature and must be shipped with an ice pack via overnight service to prevent the labels from turning in transit.


Number of Temperature Positions



.13” x .44” (3 x 11mm)





Temperature Ranges Available

Ranges available from 43°C-193°C

Labels per Box


Cover Material

Kapton (amber)


±1% NIST Traceable accuracy from 90°F to 500°F (32°C to 260°C)

NIST Available?
