Replacement pressure element for Palmer Circular Chart Recorder. PN: AWR-3276

Replacement Pre-Calibrated Pressure Elements - over 30 PSI to 10,000 PSI

SPEC SHEET

SKU: AWR-3276 Categories: , , ,

Description

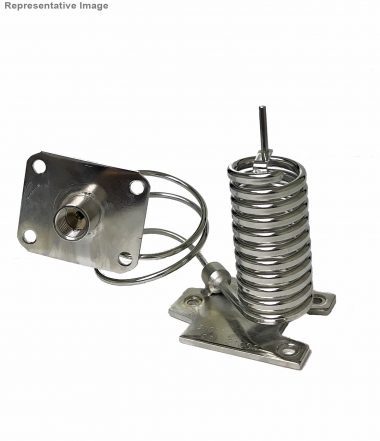

Replace the pressure system in your existing Palmer pressure recorder for repairs, or to change the range of your unit.  These all 316 Stainless Steel helical coils are available in standard pressure ranges from over 30 PSI to 10,000 PSI.  Standard fitting is 1/4” NPT Female Connection.  Optional autoclave fitting on 10,000 PSI and 600 Bar elements (requires user supplied tubing).

High pressure elements are available in 10,000 PSI, 15,000 PSI, 20,000 PSI, 25,000 PSI, and 30,000 PSI.  High pressure elements include a 9/16 inch -18 UNF High Pressure Female Autoclave fitting and require user supplied tubing.

Systems are pre-calibrated and ready for installation.

If your desired range is not shown in the options, please choose "Other" and let us know what you need.

Specifications

Pressure Range

35 PSI
45 PSI
50 PSI
60 PSI
75 PSI
100 PSI
120 PSI
150 PSI
200 PSI
250 PSI
300 PSI
250 PSI
300 PSI
350 PSI
400 PSI
500 PSI
600 PSI
750 PSI
800 PSI
1,000 PSI
1,500 PSI
2,000 PSI
2,500 PSI
3,000 PSI
4,000 PSI
5,000 PSI
6,000 PSI
8,000 PSI
10,000 PSI
6 Bar
10 Bar
16 Bar
25 Bar
40 Bar
50 Bar
60 Bar
100 Bar
160 Bar
200 Bar
250 Bar
300 Bar
400 Bar
500 Bar
600 Bar
Other
