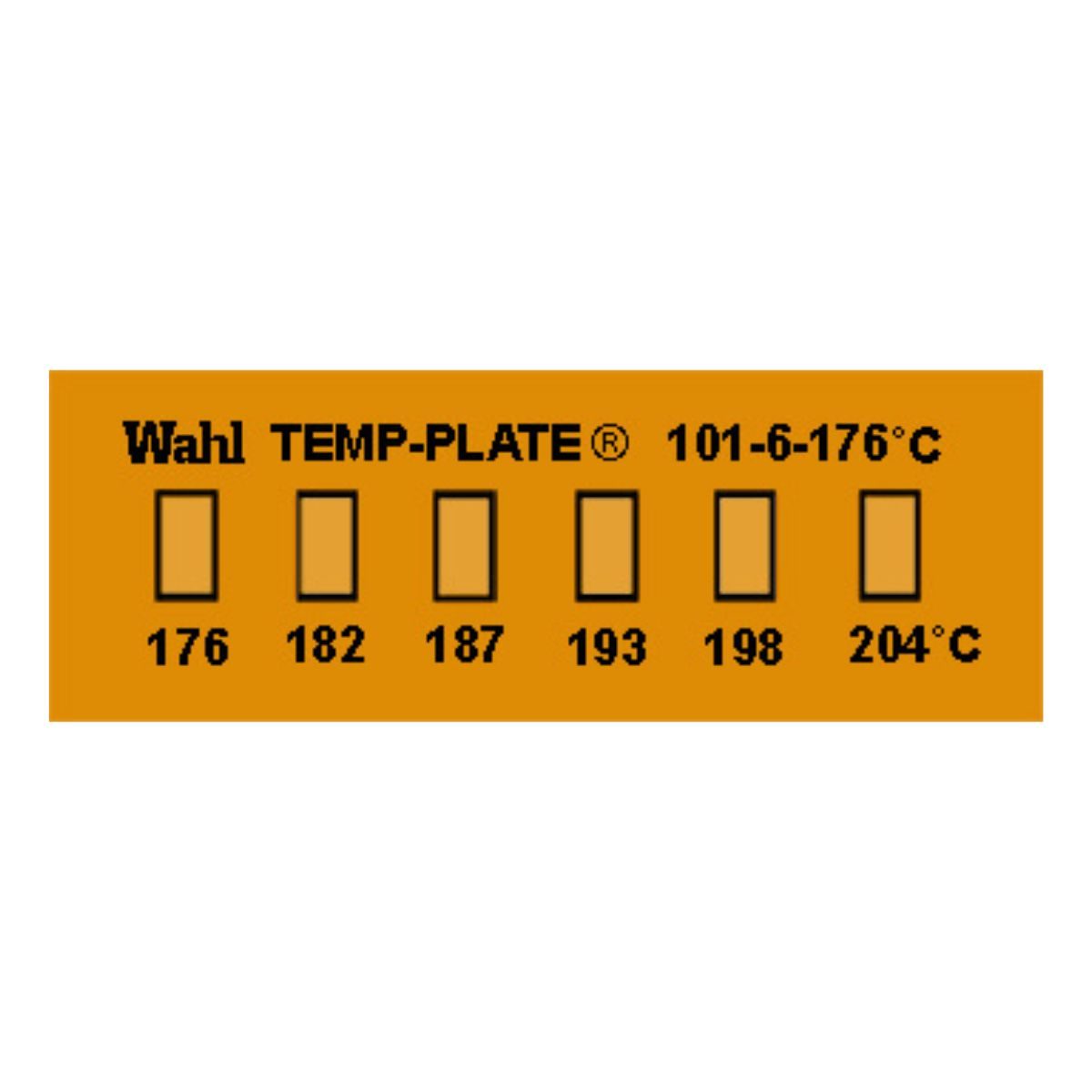

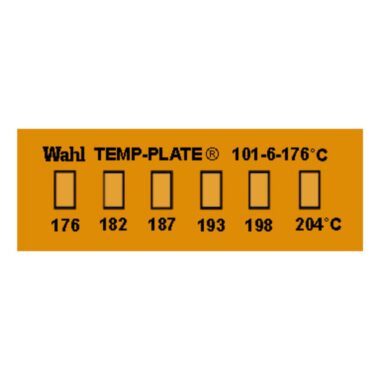

Temp-Plate® temperature sensitive labels have heat sensitive indicator "positions" that turn permanently black when the rated temperature is reached or exceeded, providing a permanent record. When four temperature points is not enough, we can still offer an off-the-shelf solution. This miniature sized label features six temperature indication points.
These IC Batch/Vacuum Chamber models are reverse printed on Kapton material for use in vacuum environments. Easy, self-adhesive installation on most surfaces, our IC Batch/Vacuum Chamber models are typicaly used on the surface of integrated circuits, but are ideal for a variety of uses.
Careful selection of the temperature points allows for detection and recording of most overheat occurrences. Each temperature position is clearly printed with the rated temperature. Labels are sold in a recloseable box of 10 labels.
Dimensions are .38 inch x 1.16 inches (10 x 29 mm).
NIST Calibration data is available for this label.
Built in Asheville, NC USA.
Purchase Temp-Plate® labels online from our dedicated website.
Note that all Temp-Plate® labels containing a temperature position of lower than 110°F/43°C are considered low temperature and must be shipped with an ice pack via overnight service to prevent the labels from turning in transit.
