Description
Choose PR Electronics transmitters for your sensor assemblies to integrate with your existing system. Specify Temperature Set Points at 4mA and 20mA and burnout high or low. Contact us for a quote or more information.
| Description | Accuracy | ||
|---|---|---|---|

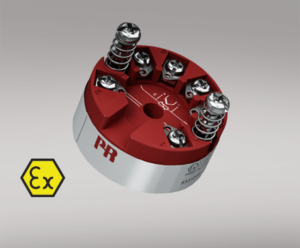

| 5331D3B |  | 2-wire programmable transmitter; RTD, TC, Ohm, or mV input. FM, CSA, ATEX | ±0.05% Span |
| 5333D |  | 2-wire programmable transmitter; RTD only. FM, CSA, ATEX. | ±0.1% Span |

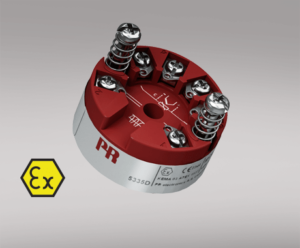

| 5335D |  | 2-wire programmable transmitter; RTD only. HART 5. FM, CSA, ATEX. | ±0.05% Span |

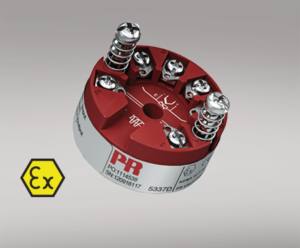

| 5337D |  | 2-wire transmitter with HART protocol. RTD, TC, Ohm, and bipolar mV input. HART 7. | ±0.05% Span |

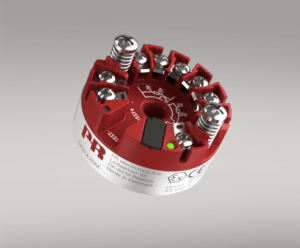

| 5437A1 |  | 2-wire HART 7 temperature transmitter. RTD, TC, potentiometer, linear resistance and bipolar mV input. Single or true dual inputs. | ±0.05% Span |
| 5437A1S | | ±0.05% Span | |
| 5437A2 | | ±0.05% Span | |
| 5437A2S | | SIL approved. | ±0.05% Span |

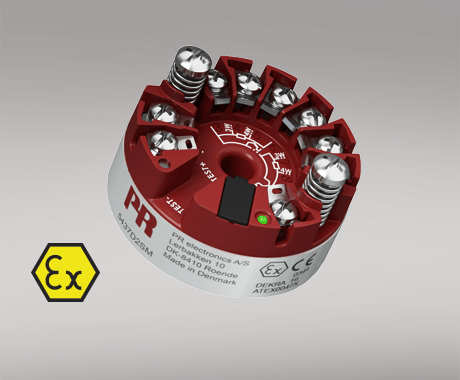

| 5437D1 |  | 2-wire HART 7 temperature transmitter. RTD, TC, potentiometer, linear resistance and bipolar mV input. Single input. | 0.04°C or 0.25°C - RTD or Thermocouple |
| 5437D1S | | 2-wire HART 7 temperature transmitter. RTD, TC, potentiometer, linear resistance and bipolar mV input. Single input. | 0.04°C or 0.25°C - RTD or Thermocouple |
| 5437D2 | | 2-wire HART 7 temperature transmitter. RTD, TC, potentiometer, linear resistance and bipolar mV input. Dual inputs. | 0.04°C or 0.25°C - RTD or Thermocouple |
| 5437D2S | | 2-wire HART 7 temperature transmitter. RTD, TC, potentiometer, linear resistance and bipolar mV input. Dual inputs. SIL approved. | 0.04°C or 0.25°C - RTD or Thermocouple |
