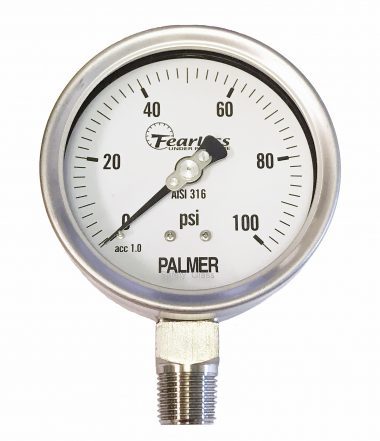

| Case Size |
4 inches (100 mm)
|
| Case Material |
AISI 304 Stainless Steel, watertight
|
| Ring |
AISI 304 Polished Stainless Steel Bayonet Bezel Ring
1/4 turn Bayonet lock removable
|
| Window |
Safety Glass, Standard
Acrylic, Optional
Replaceable
|
| Socket |
AISI 316 Stainless Steel socket and tube. Argon welded.
|
| Connection |
1/2 inch NPT.
1/4 inch NPT available (special order)
Optional 1/2 inch NPT to 1/4 inch NPT stainless steel adapter available separately.
Autoclave fitting (Option Code C) with is standard and required on ranges of 25,000 PSI and up. (Must specify Male or Female fitting)
|
| Accuracy |
± 1% on ranges below 10,000 PSI
±1.6% on ranges 15,000 PSI and above
|
| Bourdon Tube |
AISI 316 Stainless Steel
|
| Movement |
AISI 304 Stainless Steel special Dampened Movement with wear resistant, self-lubricating gears
|
| Pointer |
Balanced black aluminum. Micrometer adjustable.
|
| Dial |
White aluminum with black markings in accordance with ASME B40.1 -2005
|
| Scales Available |
PSI
Bar
kg/cm2
kPa
Dual Scale
|
| Ambient Temperature |
-40° to 185°F (-40° to 85°C)
|
| Process Temperature Limits |
-40° to 176°F (-40° to 80°C). 100°C Max.
|
| Overpressure Limits |
20% of Full Scale
|
| Available PSI Ranges |
15 PSI*
30 PSI*
60 PSI*
100 PSI*
160 PSI*
200 PSI
300 PSI*
400 PSI
800 PSI
1000 PSI
1,500 PSI
2,000 PSI
3,000 PSI
4,000 PSI
5,000 PSI*
6,000 PSI*
7,500 PSI
10,000 PSI
15,000 PSI
20,000 PSI
25,000 PSI (Specify male or female Autoclave fitting)
30,000 PSI (Specify male or female Autoclave fitting)
*Usually in stock
|
| Available Vacuum Ranges |
-30 inches of HG to 0 inches of HG
|
| Available Compound Ranges |
-30 inches of HG to 15 PSI
-30 inches of HG to 30 PSI
-30 inches of HG to 60 PSI
-30 inches of HG to 100 PSI
-30 inches of HG to 160 PSI
|

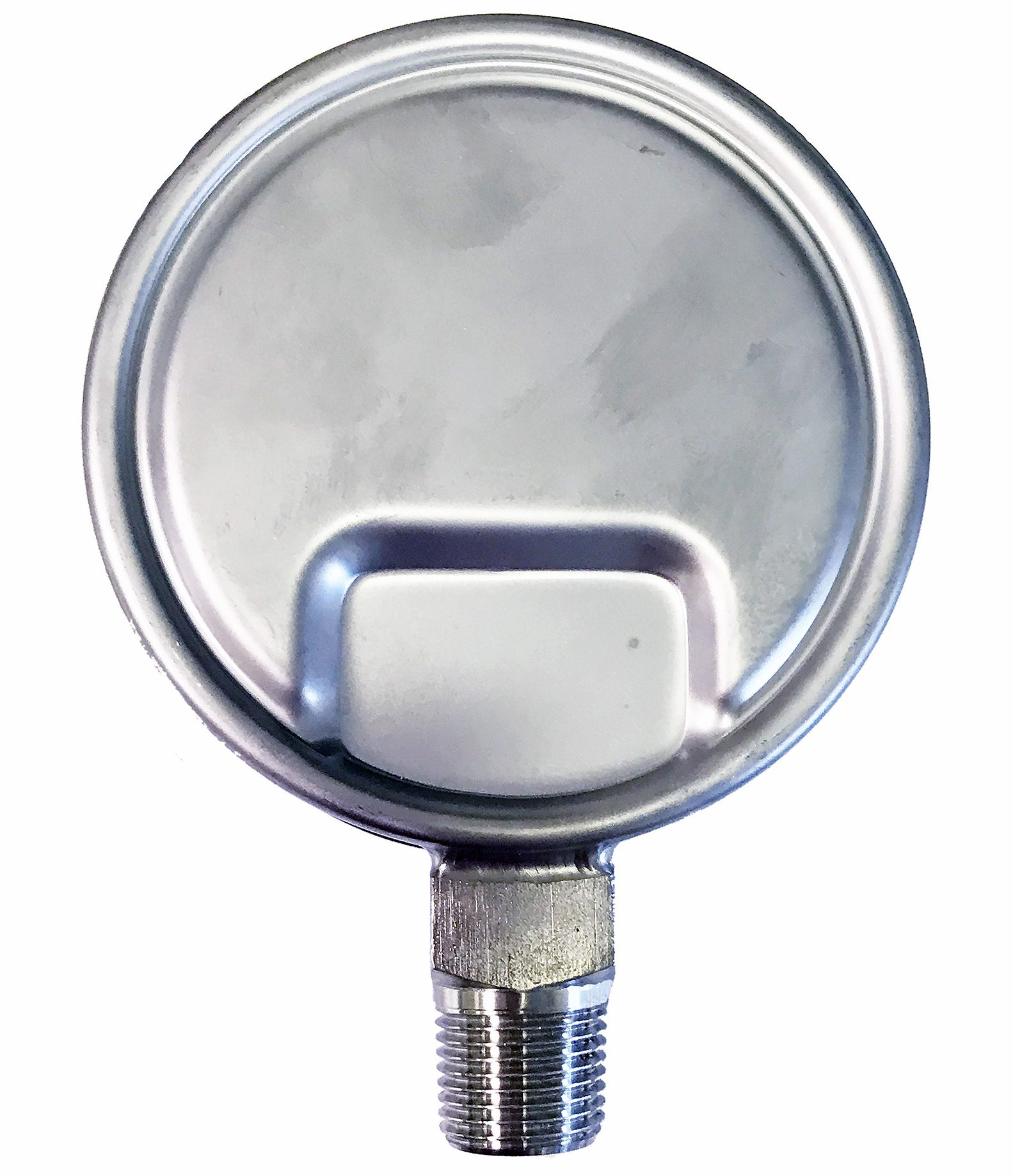

| Available Mounting Styles |
Stem Mount, Lower Connected
Stem Mount, Back Connected (special order)
Flush Mount, Back Connected, U clamp (special order)
Flush Mount, Back Connected, Front Flange (special order)
Surface Mount, Lower Connected, Rear Flange (special order)
|

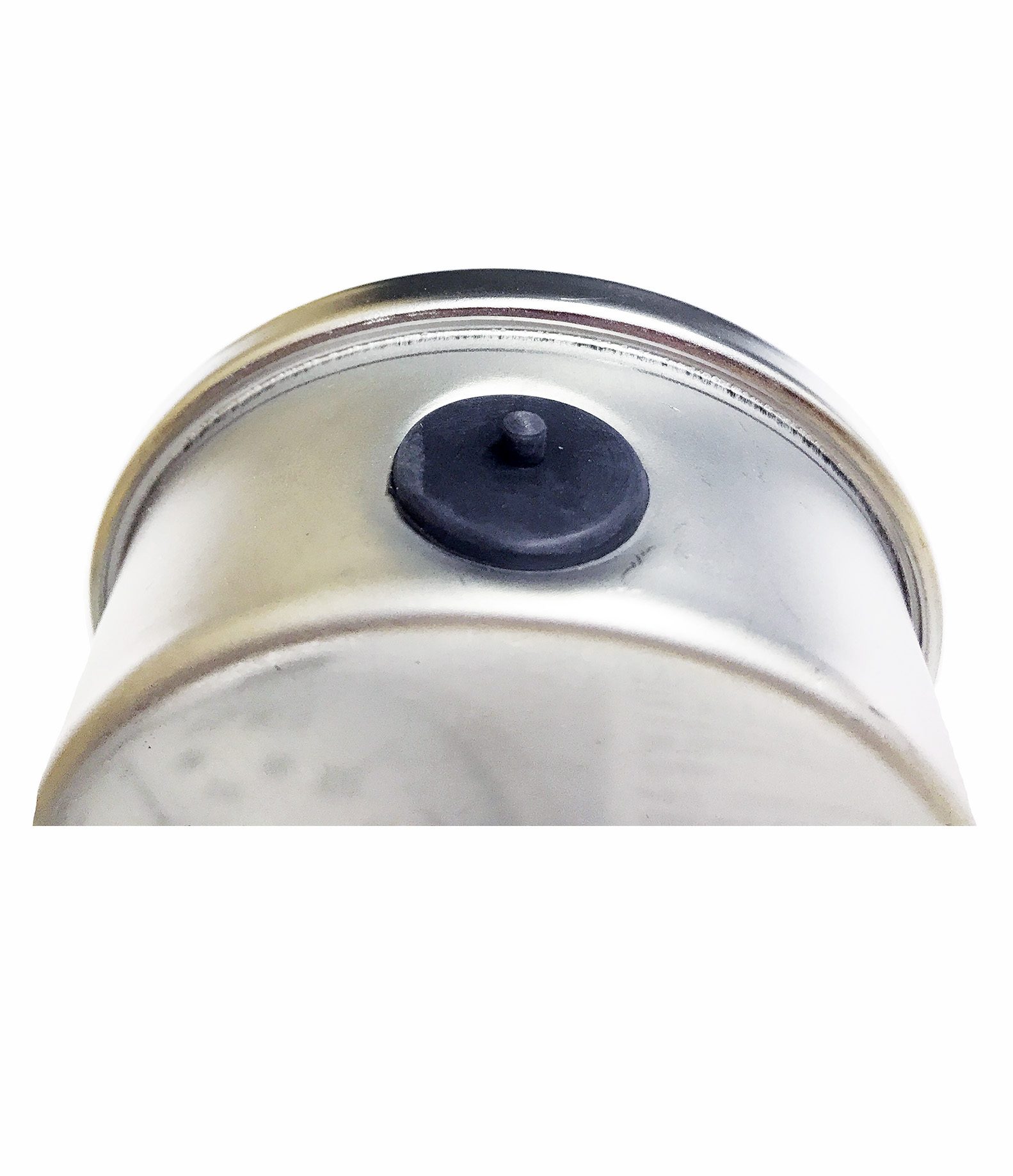

| Fill |
Dry
Wet (Glycerin fill standard)
Optional Silicone Fill available
|
| Blow Out Disc |
Optional Blow out disc option available for Dry or Glycerin filled gauges only. Must be specified with option code Y at time of order. Contact factory for availability and lead times.
|
| Note |
Oxygen cleaning available
|
| IP Rating |
Dry: IP65
Wet: IP65
|
