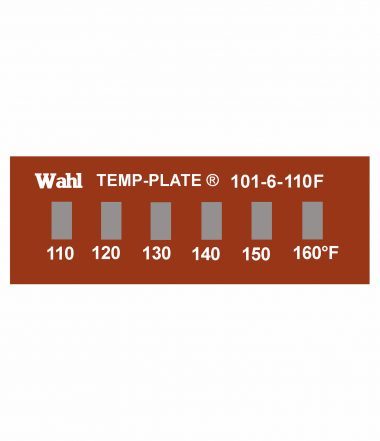

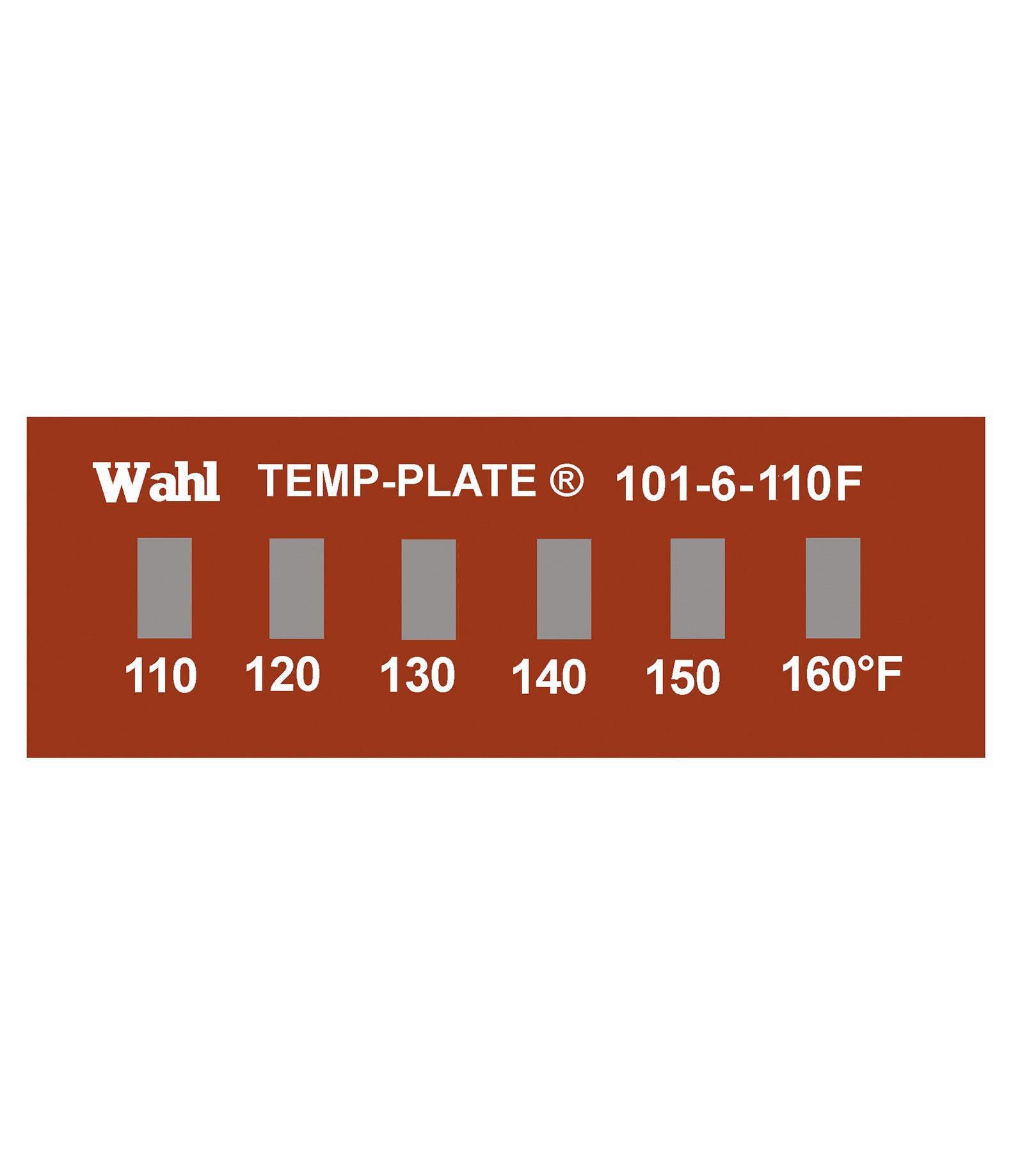

Mini Six Position Temp-Plate® Temperature Sensitive Labels

Mini-Six Position Temp-Plate® labels are ideal in cases where four temperature points aren't enough.

Buy online at


Temp-Plate® temperature sensitive labels have heat sensitive indicator "positions" that turn permanently black when the rated temperature is reached or exceeded, providing a permanent record.   When four temperature points is not enough, we can still offer an off-the-shelf solution.  This miniature sized label features six temperature indication points.

Useful for general purpose maintenance as well as specialized applications. Easy, self-adhesive installation on most surfaces. Careful selection of the temperature points allows for detection and recording of most overheat occurrences.  Each temperature position is clearly printed with the rated temperature.  Labels are sold in a recloseable box of 10 labels.

Dimensions are .38 inch x 1.16 inches (10 x 29 mm).

NIST Calibration data is available for this label.

Built in Asheville, NC USA.

Purchase Temp-Plate® labels online from our dedicated website.

Note that all Temp-Plate® labels containing a temperature position of lower than 110°F/43°C are considered low temperature and must be shipped with an ice pack via overnight service to prevent the labels from turning in transit.


Number of Temperature Positions



.38" x 1.16" (10 x 29mm)




Either °F or °C

Temperature Ranges Available

Ranges available from 110°F-160°F labels to 420°F-500°F labels in Fahrenheit, or 43°C-71°C labels to 215°C-260°C labels in Celsius.

Labels per Box


Cover Material

Mylar (clear) for ranges 90/350°F (32/176°C). Kapton (amber) for ranges 350/500°F (176/260°C).


±1% NIST Traceable accuracy from 90°F to 500°F (32°C to 260°C)

NIST Available?
